![](pictures/highboy/roughtank2.jpg) |
The beginning of the tank out of styrofoam |
![](pictures/highboy/carvedtank2.jpg) |
Tank after carving |
![](pictures/highboy/framebend0001.jpg) |
Frame bar bent the hard way with notches and muscle |
![](pictures/highboy/framebend0002.jpg) |
Frame bars on the scale drawing |
![](pictures/highboy/frame1.jpg) |
The front end welded together |
![](pictures/highboy/frame2.jpg) |
The frame with the chainstays |
![](pictures/highboy/framedropouts.jpg) |
My semi-flame dropouts |
![](pictures/highboy/frame3.jpg) |

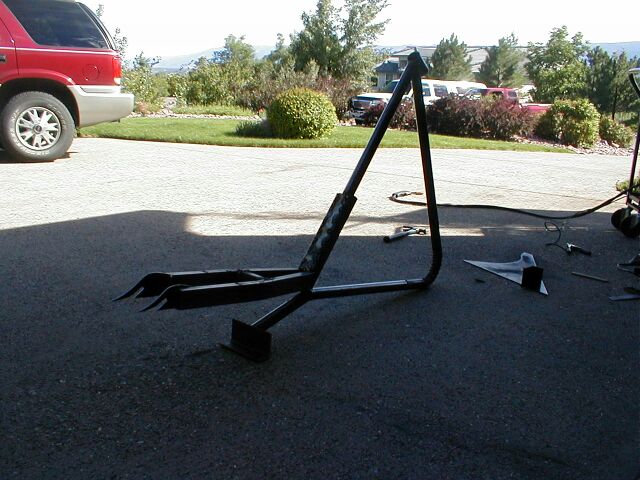

The widening of the bottom tube |
![](pictures/highboy/frame4.jpg) |
The rods to support the body work |
![](pictures/highboy/tripletrees0001.jpg) |
The triple trees tack welded and bolted in place |
![](pictures/highboy/tripletrees0002.jpg) |
The triple trees cut and partially ground down |
![](pictures/highboy/frameandfork.jpg) |
The finished triple trees on the bike. |
![](pictures/highboy/frameassembly.jpg) |
The first rolling chassis assembly and test ride |
![](pictures/highboy/fenderframe.jpg) |
The frame of the fender taking shape |
![](pictures/highboy/fender1.jpg) |
The fender with the sheet metal covering |
![](pictures/highboy/frame5.jpg) |
The fender ground smooth but not finished |
![](pictures/highboy/fender0001.jpg) |
The fender with the tip finished |
![](pictures/highboy/fender0002.jpg) |
Another view of the fender with the tips |
![](pictures/highboy/fender0003.jpg) |
The 3.0 slick tire in the fender |
![](pictures/highboy/forkgusset.jpg) |
The New Legacy logo made a good gusset for the fork |
![](pictures/highboy/tankhalves.jpg) |
The two sides of the tank after they are cast. |
![](pictures/highboy/rims1.jpg) |
The rim insert placed in the tire channel before the hole for the hub was drilled. |
![](pictures/highboy/firstassembly.jpg) |
The rims set in place for a first look. |
![](pictures/highboy/tankonframe.jpg) |
The tank on the frame for the first time. |
![](pictures/highboy/rim2.jpg) |
Finished rim before powdercoating. |
![](pictures/highboy/intruck.jpg) |
The unfinished highboy loaded in the truck. |
![](pictures/highboy/bondo.jpg) |
Here is the bike in the middle of doing the bondo work. |
![](pictures/highboy/paint0001.jpg) |
Primer |
![](pictures/highboy/paint0002.jpg) |
Black Base Coat |
![](pictures/highboy/paint0003.jpg) |
Flames masked and yellow being applied |
![](pictures/highboy/paint0004.jpg) |
After Yellow is applied |
![](pictures/highboy/paint0006.jpg) |

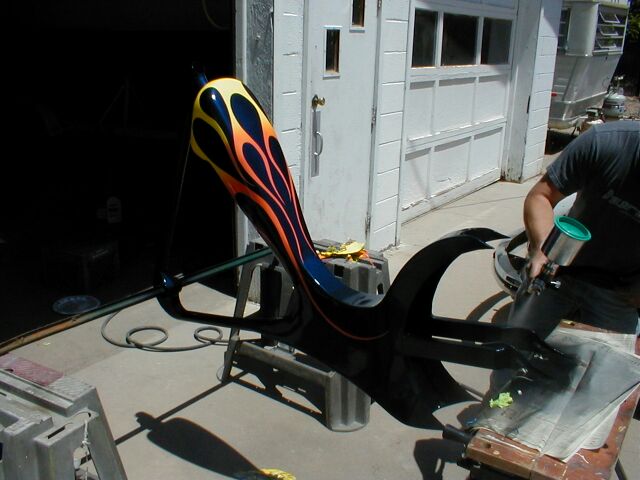

Final Paint after blue pearl is applied |
![](pictures/highboy/painted.jpg) |
The painted frame and fork |
![](pictures/highboy/seat.jpg) |
Seat velcro-d in place |
